Install & first run

Requirements: Node ≥ 22.13 (GraphMind uses Node’s built-in SQLite — no native modules, no build step). macOS, Linux and Windows all work.

1. See it work — no API key

npx graphmind-ai demo

This starts the local server, opens the viewer, and replays a recorded trip-planner agent that contains a planted bug: convertCurrency inverts an exchange rate, so the budget check later throws on an absurd total.

The replay is not a video. It goes through the real ingest pipeline and honours the real control protocol — the planted error genuinely pauses, and continue / retry / inject / abort from the viewer steer the replay onto the matching pre-recorded branch. It is the same code path your own agent will take.

Press Ctrl+C when you are done; the server shuts down with it.

2. Start the debugger for your own app

Leave this running in its own terminal:

npx

npx graphmind-ai

pnpm

pnpm dlx graphmind-ai

yarn

yarn dlx graphmind-ai

global

npm i -g graphmind-ai
graphmind

With no command, the CLI runs serve: a server on http://127.0.0.1:4747 (always bound to loopback — never expose the port) and the viewer in your browser. --port moves it, --no-open suppresses the browser. See the CLI reference for everything else.

3. Instrument your agent

Install the adapter for your framework:

Vercel AI SDK

npm i -D @graphmind-ai/sdk

Anthropic

npm i -D @graphmind-ai/anthropic

OpenAI

npm i -D @graphmind-ai/openai

LangGraph

npm i -D @graphmind-ai/langgraph

Python

pip install graphmind-ai

Tip

Install it as a dev dependency. GraphMind disables itself under NODE_ENV=production anyway, but keeping it out of your production dependency tree is the cleaner statement.

Then wrap the two things a debugger needs handles on — the model and the tools — and name the run:

Vercel AI SDK

agent.ts

import { graphmind } from '@graphmind-ai/sdk';
import { streamText } from 'ai';

const gm = graphmind({ app: 'support-agent' });

const model = gm.wrapModel(anthropic('claude-sonnet-4-5'));
const tools = gm.wrapTools({ searchOrders, issueRefund });

// Wait for the debugger handshake so gates are armed from the first event.
await gm.ready();

await gm.run('handle-ticket', () =>
  streamText({ model, tools, prompt: userMessage }).consumeStream(),
);

await gm.dispose();

Anthropic

agent.ts

import { graphmind } from '@graphmind-ai/anthropic';
import Anthropic from '@anthropic-ai/sdk';

const gm = graphmind({ app: 'support-agent' });

const client = gm.wrapClient(new Anthropic());
const tools = gm.wrapTools({ searchOrders, issueRefund });

await gm.ready();

await gm.run('handle-ticket', async () => {
  // your usual messages.create / tool-use loop, using `client` and `tools`
});

await gm.dispose();

OpenAI

agent.ts

import { graphmind } from '@graphmind-ai/openai';
import OpenAI from 'openai';

const gm = graphmind({ app: 'support-agent' });

const client = gm.wrapClient(new OpenAI());
const tools = gm.wrapTools({ searchOrders, issueRefund });

await gm.ready();

await gm.run('handle-ticket', async () => {
  // your normal responses.create / chat.completions loop
});

await gm.dispose();

LangGraph

agent.ts

import { graphmind } from '@graphmind-ai/langgraph';

const gm = graphmind({ app: 'support-agent' });

// Full gate set (inject + retry) needs the tool wrappers.
const tools = gm.wrapTools({ searchOrders, issueRefund });

await gm.ready();

// gm.config() supplies the callback handler AND its abort signal.
const result = await graph.invoke({ messages }, gm.config());

await gm.dispose();

Python

agent.py

import graphmind

gm = graphmind.graphmind(app="support-agent")

client = graphmind.instrument_openai(OpenAI())

gm.ready()

with gm.run("handle-ticket"):
    ...  # your normal loop

gm.dispose()

That is the whole integration. Every adapter exposes the same shape — a client/model wrapper (or a callback handler), wrapTools, run and ready — so switching frameworks does not mean relearning GraphMind. Each integration page has the complete, runnable version and the exact gate behaviour for that framework.

Why await gm.ready()

The transport is lazy: nothing touches the network until the first event. An agent that starts in the same tick as graphmind() can therefore blow past its first gates before the handshake lands. await gm.ready() forces the connection and resolves once the viewer’s breakpoints and mode are armed. It resolves false after 2 s if no debugger is there — that is not an error, it means “carry on undebugged”. You can also pass waitForAttach: true and let the first call do it for you.

4. Run it

1. Keep graphmind serving in one terminal.

2. Start your agent normally in another — node agent.js, tsx agent.ts, next dev, whatever you already do. No flags, no wrapper process.

3. Watch the viewer. Nodes appear as the agent reaches them and light up while they execute.

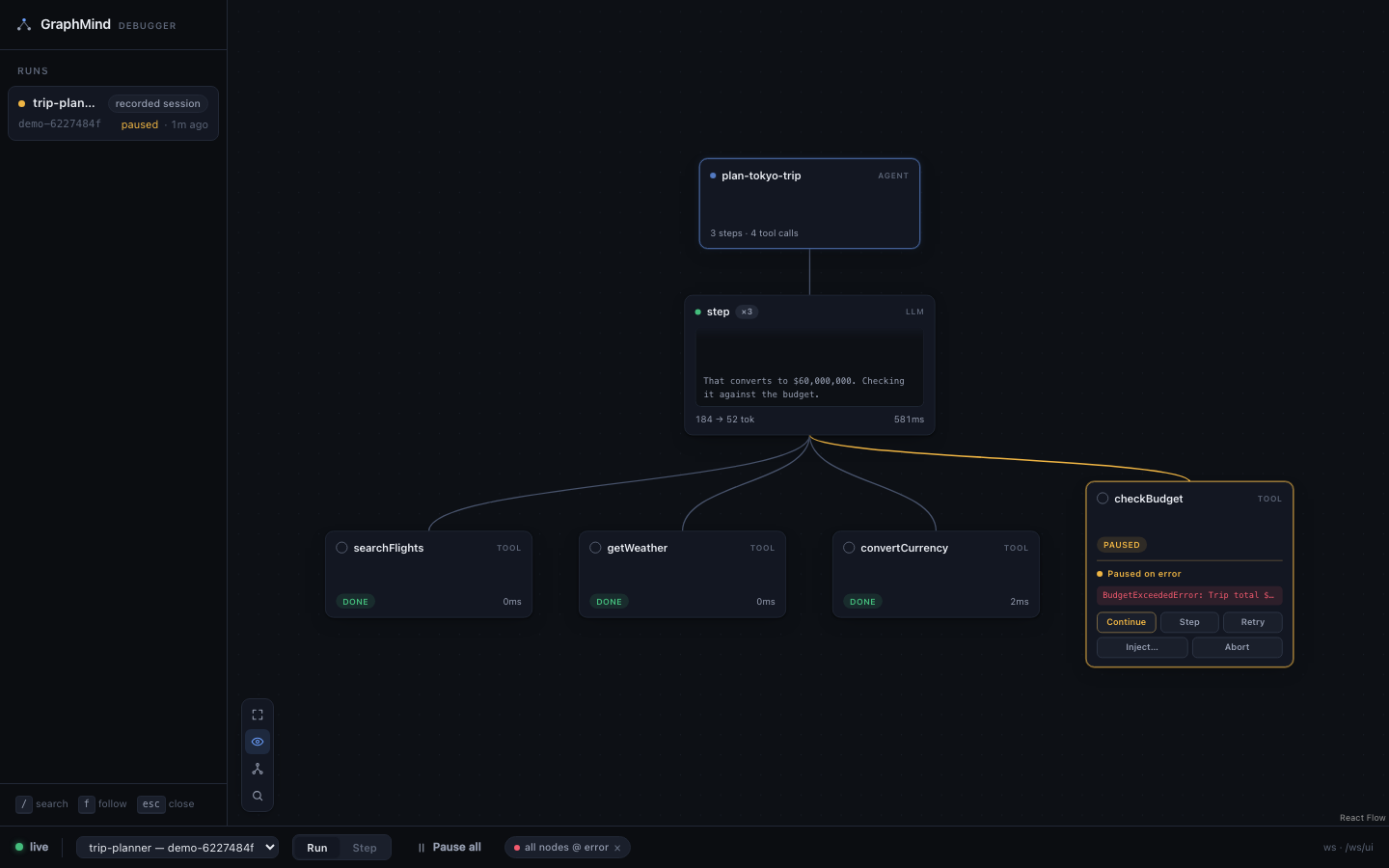

4. When something throws, the run stops there. Pause-on-error is armed by default. Open the inspector, read the inputs, and choose continue, retry, inject or abort.

5. Press ⌘K in the viewer for everything else — jump to any node, filter to the error path, open the timeline. See the viewer.

If nothing appears, work through troubleshooting — it is almost always a port mismatch or a process that exited before the handshake.
